The Specification of 8 ton electric forklift
| Model | | FB80 |
| Rated Capacity | kg | 8000 |
| Load Centre | mm | 600 |
| Lift Height | mm | 3000 |
| Fork Size (L×W×T) | mm | 1220×150×70 |
| Mast Tilt Angle F/R (α°/β°) | Deg | 6/10 |
| Length to face of fork (Without fork) | mm | 3780 |
| Overall Width | mm | 2200 |
| Mast Lowered Height | mm | 2600 |
| Mast Extended Height (With backrest) | mm | 4400 |
| Overhead Guard Height | mm | 2500 |
| Turning Radius (outside) | mm | 3350 |
| Front Overhang (Wheel center to fork face) | mm | 685 |
| Tread (Front/Rear) | mm | 1650/1718 |
| Ground Clearance (Bottom of mast) | mm | 200 |
| Wheelbase | mm | 2450 |
| Fork Spread (Min./Max) | mm | 300/2000 |
| Travel Speed | km/h | 14 |
| Lifting Speed (Full load) | mm/s | 300 |
| Max. Gradeability | % | 10 |
| Service Weight | kg | 12780 |
| Front Tire | | 9.00-16-14PR |
| Rear Tire | | 8.25-15-14PR |
| Driven Motor | kw | 14×2 |
| Lift Motor | kw | 25×2 |
| Battery Standard | V/Ah | 80/1150 |
| Controller Manufacturer | | CURTIS AC |
| Operating Pressure for Attachment | Mpa | 18 |
8 ton electric forklift feature
1. Easy-to-read operator display
2. Front Dual AC Motor Traction System
3. World Class Gear Box System
4. Automatic Maintenance Alarm
5. The most advanced 3-phase full AC technology in LTMG’s electric range combining the Italian ZAPI electric controller,ZAPI-SUPEREC AC motors,and HAKWER battery,as well as the excellent hydraulic system,these features guarantee your material handling become the most cost-efficient.
6. The Energy Regeneration Function extend extra 15% working hours,which provide the possibility for your tough and long-time working condition.
After-sale service
Nowadays we have been sell more than 100 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
FAQ:
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
|
|

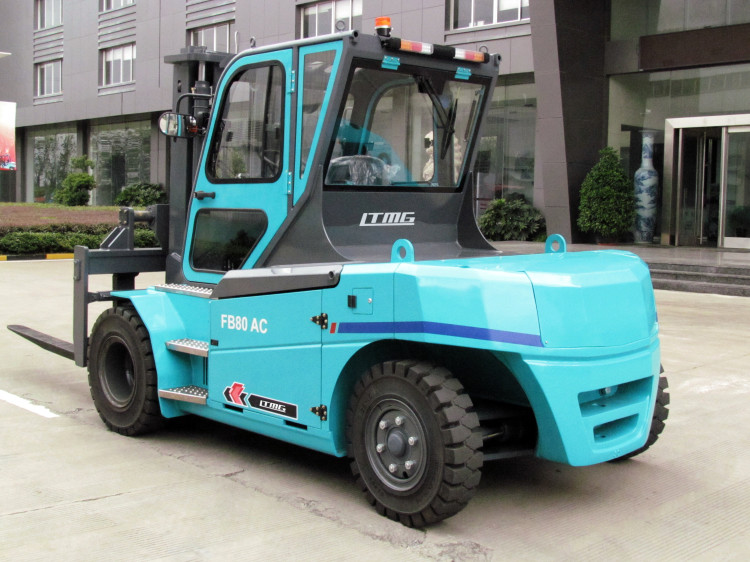

8000kg Electric Hydraulic Forklift Equipment ZAPI Controller 1520mm Fork Length Images
|
