6 ton wheel loader specification
| Model | LT 966 |
| Operating weight | 19.5T ±0.5T |
| Rated load | 6,000 kg |
| Bucket capacity | 3.5 m³ |
| Engine model | WEICHAI WD240E21 |
| Rated engine power | 175 KW(199KW is optional) |
| Rated rotate speed | 2200 r/min |
| Max.torque | 920N.m |
| Max. traction force | ≥185KN |
| Breakout force | ≥200KN |
| Driving speed | |
| Forward Ⅰ | 0-6.5km/h |
| Forward Ⅱ | 0-12.3km/h |
| Forward Ⅲ | 0-24km/h |
| Forward IV | 0-41km/h |
| Reverse Ⅰ | 0-8km/h |
| Reverse Ⅱ | 0-15km/h |
| Reverse Ⅲ | |
| Reverse IV | |
| Grade ability | 28° |
| Overall length | 8380mm±20mm |
| Overall width | 3100mm±20mm |
| Overall height | 3560mm±20mm |
| Bucket width | 3200mm±10mm |
| Wheel base | 3470mm±15mm |
| Track base | 2360mm±10mm |
| Min.ground clearance | 470mm |
| Max.dumping height | 3200mm±30mm |
| Max.dumping reach | 1290mm±20mm |
| Transmission | countershaft |
| Fuel tank | 230L |
| Hydraulic tank | 270L |
| Raise time | ≤6.8s |
| Total | ≤12.5s |
| Tyre type | 26.5-25 |
6 ton wheel loader feature
LTMG wheel loader is rooted in the customers’ needs and based on the international R&D platform to thoroughly improve the product reliability, economy, comfort, efficiency, maintenance convenience, and adaptability and is a preferential machinery product for the production organization in the fields of ports, mines, engineering constructions, and logistics.
With a wide scope design, this machine is applicable for diversified working environments, including high altitude, heavy dust, high temperature, and low temperature. The diversified attachments can be equipped to meet the needs of diversified working conditions.
Customized enlarge bucket 3.5-4.5 m³.
After-sale service
Nowadays we have been sell more than 100 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
FAQ:
1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
|
|

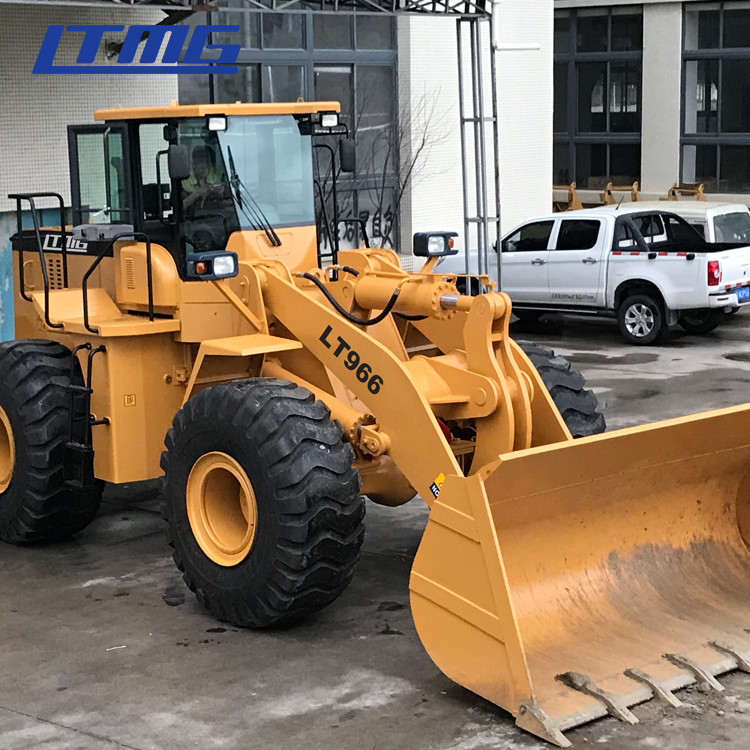

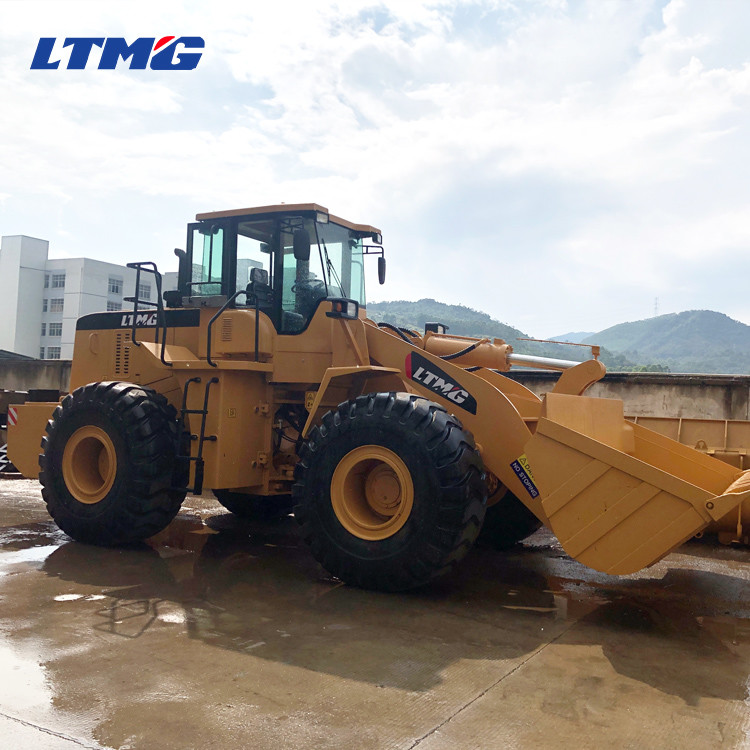

LTMG 6000kg new front end wheel loader with standard 3.5 m³ bucket capacity Images
|
