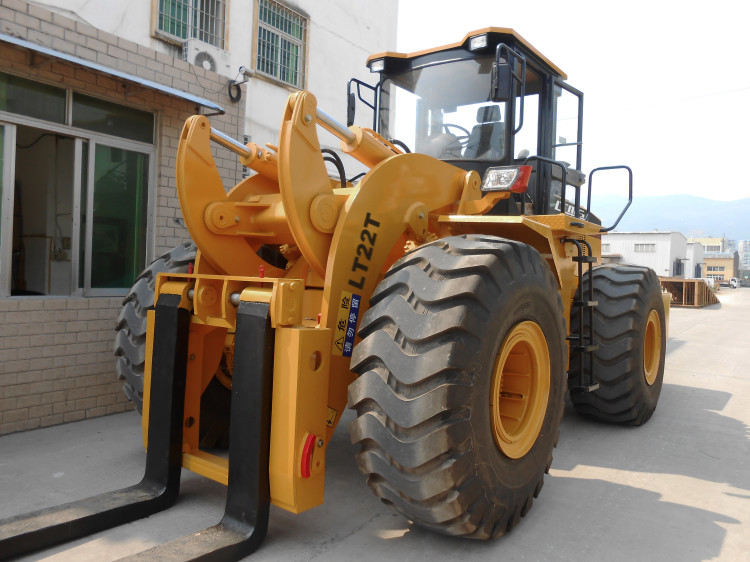

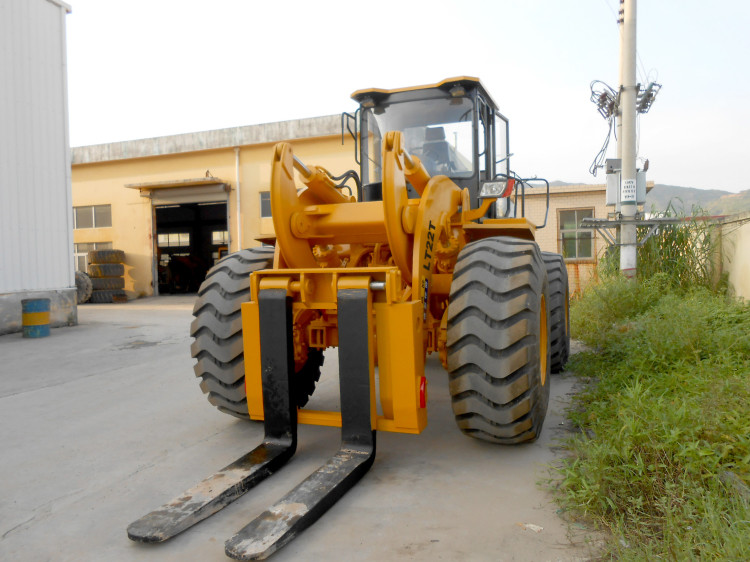

22 ton front end loader wheel loader with steel coil fork
Standard Facility
1. The operate weight is 23 T; it is 3T-5T heavier than other brands.
2. 240HP/hr Top-grade Diesel Engine (WEICHAI engine), co-worker of German Deutz Company and AVL technology, Austria; 6 Cylinders, Turbocharged Intercooled, with multinomial patents, synthesize multilevel compound desert air filter technology, high efficiency low noise and cooling technology, especially for using in dusty environment.
3. Front tyre: 26.5-25-28PR tire.
4. When full-load (22tons), the Max. Lifting height reaches 3.3m.
5. High Pressure Hydraulic Hose and Fittings: “PARKER”-the heavy duty performers (worldwide market leader in No-Skive hose technology).
Performance Features
1. The frame is specially enlarged to withstand fork loading operations of harsh stone mining. Enabling longer service life through using more material to build up the strongest frame.
2. Machine can work under various complex conditions with the high distance of the chassis from the ground and large departure angle of the balance weight.
3. Single rocker arm and fixed shaft power shift transmission can guarantee large breakout force and lifting force.
4. Hydraulic oil cooler keeps good thermal equilibrium of hydraulic system.
5. The coaxes flow-amplified, hydraulic compensated steering system makes operation easy and performance reliable.
6. Backing alarming system ensures high safety and reliability.
7. In case equipped with bucket, the machine can be used for land levelling as well.
The specification of 22 ton forklift loader
| Model | LT22T |
| Operating weight | 23,000kg |
| Engine model | WD10G240E21 |
| Rated engine power | 175KW |
| Rated rotate speed | 2200r/nin |
| Max.torque | 920N.m |
| Max.dumping height | 3300mm |
| Rated load | 22tons @3300mm height, 24tons @1600mm height |
| NO.of shifts | Forward 4 For Reverse 2 |
| |
| Driving speed | |
| Forward/ReverseⅠ | 0-6.5km/h |
| Forward/ReverseⅡ | 0-12.3km/h |
| Forward/ReverseⅢ | 0-24km/h |
| Forward/ReverseIV | 0-41km/h |
| Grade ability | ≥25° |
| Turning angle | 35°±1° |
| Overall length | 8400mm |
| Overall width | 3130mm |
| Overall height | 3550mm |
| Wheel base | 3550mm |
| Track base | 2510mm |
| Dimension of the fork | 1500*250*120mm |
| |
| Torque converter | Model: YJ375X3 ratio:3.166 |
| Cycling time | 16s |
| Tire type | 26.5-25 |
After-sale service
Nowadays we have been sell more than 60 countries. All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.
